IRRIGATOR Series

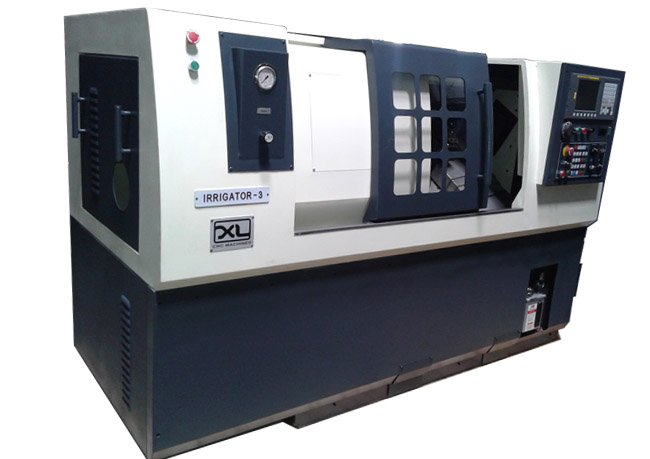

Irrigator Series CNC Pipe Threading Machines

Variants in IRRIGATOR-2, IRRIGATOR-3, IRRIGATOR-4

CNC Lathes IRRIGATOR Series are for machining and threading the ends of PVC column pipes and couplers. These pipes are used for submersible pump installations

Brochure Get Quote

Brochure Get Quote

Features
Technical Specifications
Videos

Standard Features:

LM Guideways for X and Z Axes
Ball Screws for X and Z Axes with preloaded double ball nut
Automatic centralized lubrication.
Full machine guarding with chip tray
Inclination of the slide 30 degrees for easy chip gliding and coolant flow.
Stainless steel sliding covers.
Dual control for Single Operator for pipes.
Braking resistor for quick braking of spindle.
Hydraulic chuck and hydraulic power pack with air cooler
Spindle encoder
Coolant System with piping and chip bin

Machining Operations carried-out at the ends of PVC Column Pipes & Couplers:

Turning, facing, external sealing groves, locking grooves etc.,
Boring, internal sealing grooves, locking grooves etc.,
External chamfering, internal chamfering.
Profiling for various shapes of grooves for sealing and locking purposes
External and internal thread cutting.
Taper turning.

Details	IRRIGATOR-2	IRRIGATOR-3	IRRIGATOR-4
Capacities:
Min. Nominal Size of Column Pipe, (inch)	1	1	1
Max Nominal Size of Column Pipe, (inch)	2	3	4
Max Pipe length, (feet) / metre	10/3	10/3	10/3
End Working Length (Max.) mm	300	300	300
Min. Nominal Size of Coupler, (inch)	1	1	1
Min. Nominal Size of Coupler, (inch)	4	4	4
Bore through spindle (mm)	65	91	118

Hydraulic chuck (Standard)	250	315	315
TOOL TURRET(Electro-Mechanical)	Standard	Standard	Standard
No of stations	8	8	8
Tool shank size	20x20	20x20	20x20
Spindle:
Spindle speed (Max.)	1000	1000	1000
Spindle power (kW)	5.5	7.5	7.5
TRAVERSES:
X-Axis (mm)	200	200	200
Z-Axis	400	400	400
Rapid traverse (m/min.)	25	25	25
Coolant System with piping and chip bin	Yes	Yes	Yes
Machine Size & Power:
Length (mm)	2350	2350	2350
Width (mm)	1550	1550	1550
Height (mm)	1550	1550	1550
Height of spindle center from floor (mm) i.e. Loading Height	1000	1000	1000
Wight (kgf)	2000	2250	2500
Connected power (kVA)	12	15	15
Controls:
CNC System	Fanuc	Oi-TF
Axis Drive Package	Fanuc AC Digital Servo	Oi-TF
NOTE: The specifications are subject to change without notice.

Note: Technical Specifications and illustrations are subject to change arising out of continuous product development

Irrigator Series CNC Pipe Threading Machines

Standard Features:

Machining Operations carried-out at the ends of PVC Column Pipes & Couplers:

Videos will be uploaded soon.

Related Products for CNC Turning Machines

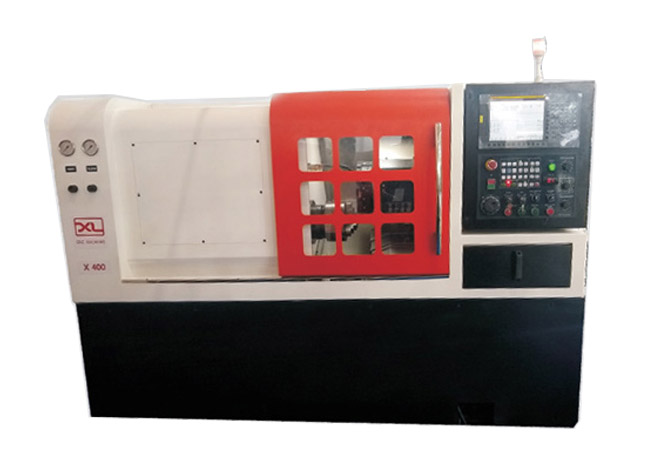

X Series

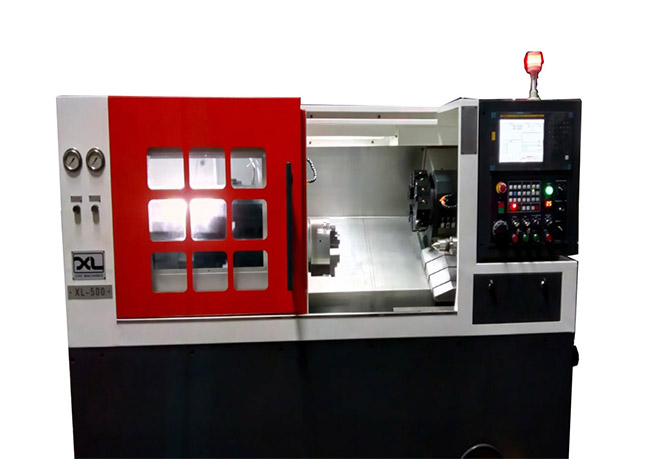

XL Series

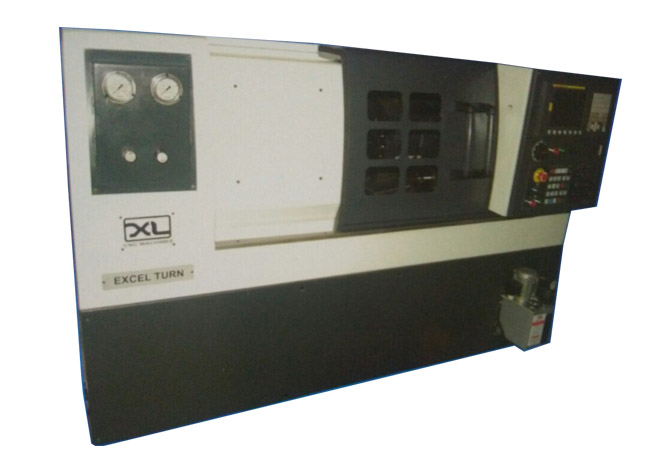

Excel Turn Series
